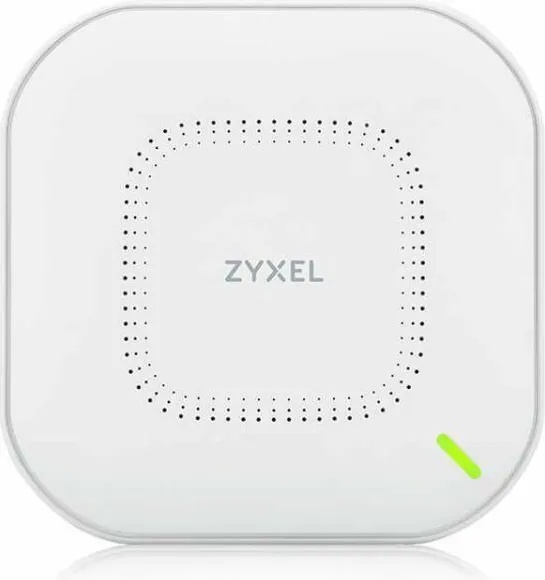

AX3000 WiFi 6 Dual-Radio NebulaFlex Pro Access Point WAX630S     Ultra-fast, Smarter WiFi 6 Access Point Featuring 6 spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz ), OFDMA and MU-MIMO capabilities, the Zyxel WAX630S is the true WiFi 6 access point that provides ultra-fast speed and consistent performance for your wireless network. Any environment that needs to accommodate a large number of devices, it can offer a faster and smarter connection to everyone every time when they connect to the WiFi.    Robust Hardware You Can Trust Every hardware design detail is critical to performance and reliability. The WAX630S access point is built with selected high quality components to warrant the best experience and longevity.    Hassle-free Upgrade To meet the growing demands for WiFi connectivity, the WAX630S enhances the network capacity with 2.90 Gbps WiFi speed and 2.5 Gbps multi-gigabit Ethernet port, which allows multi-gigabit speed run on the existing infrastructure without the need of re-cabling. Further boosted by smart antenna technology, it ensures everyone is provided with the optimum performance every time when they connect to the WiFi. Organizations such as schools, hotels, and retail stores can upgrade to the ultra-fast WiFi 6 network easily at an affordable price.    Specifications: Product name Description 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point Wireless Standard IEEE 802.11 ax/ac/n/g/b/aMIMO MU-MIMOWireless speed 2.4GHz: 575 Mbps
5GHz: 2400 MbpsFrequency band 2.4 GHz

• USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz

5 GHz

• USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth 20-, 40-, 80- and 160-MHzConducted typical transmit output power*1
(limited by local regulatory requirements) US (2.4GHz/5GHz): 23/28 dBm
EU (2.4GHz/5GHz): 19/25 dBm RF Design Antenna type 4x4 + 2x2 smart antennaAntenna gain 2.4GHz: Peak gain 3 dBi
5GHz: Peak gain 4.5 dBiMinimum Receive sensitivity Min. Rx sensitivity up to -101 dBm WLAN feature Band Steering YesWDS/Mesh*2 YesFast roaming Pre-authentication, PMK caching and 802.11r/k/vDCS YesLoad balancing Yes Security Encryption

• WEP
• WPA
• WPA2-PSK
• WPA3

Authentication

• WPA
• WPA2
• WPA3-En terprise
• EAP
• IEEE 802.1X
• RADIUS authentication

Access management

• L2-isolation
• MAC filtering
• Rogue AP detection

Networking IPv6 YesVLANs YesWMM YesU-APSD Yes Management Operating mode

• Nebula Cloud managed
• Controller-managed
< li>Standalone

ZON Utility

• Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations
  • IP configuration
  • IP renew
  • Device factory reset
  • Device reboot
  • Device locating
  • Web GUI access
  • Firmware upgrade
  • Password configuration

Zyxel Wireless Optimizer

• WiFi AP planning
• WiFi coverage detection
• Wireless health management

Web UI/CLI YesSNMP Yes Physical Specifications Item Dimensions (WxDxH)(mm/in. )
180 x 180 x 39/7.09 x 7.09 x 1.54
Weight (g/lb. )
530/1.17Packing Dimensions (WxDxH)(mm/in. )
228 x 216 x 63/8.98 x 8.5 x 2.48
Weight (g/lb. )
765/1.69Included accessories

• Mount plate
• Mounting screws

MTBF (hr) 321,114 Physical Interfaces Ethernet port 1 x 1/2.5Gbps LAN, 1 x 1Gbps LANPower

• PoE (802.3) at: power draw 19.5 W
• DC input: 12 VDC 2 A
