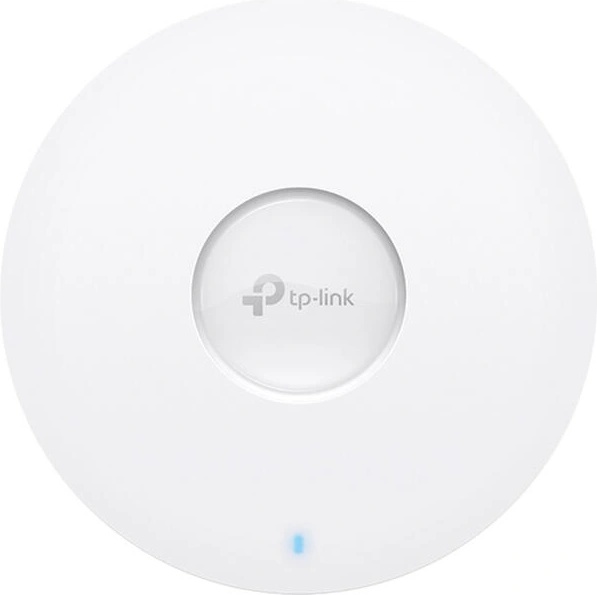

AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
 High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
 Centralized Cloud Management
Manage the whole network locally or from the cloud
 2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port
 160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡
 Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference
 Omada Mesh Technology
More flexible and convenient wireless deployment§
 Seamless Roaming
Uninterrupted streaming when moving between APs§
 PoE+ Powered
Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations
  Hospitality High-quality and full coverage Guest WiFi Education

High-security WiFi to connect more devices Shopping Mall Seamless marketing WiFi coverage to boost business Meeting Room Faster streaming, downloading, video conferencing, and more Office

Stable, seamless, and high-security WiFi coverage Higher Efficiency for More Devices Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag. ‡  Enjoy faster speeds on more devices with less lag. Easy Deployment & Higher Performance by Omada Mesh§ Easy Pairing, Less Wiring With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. Boosted Network Security and Efficiency   Security

• Secure Guest Network with Up to 16 SSIDsGuest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
• Boost Business with SMS LoginCaptive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page. §
• WPA3 for Worry-Free Open Public NetworksWith advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

  Eff iciency

• Band SteeringAutomatically moves dual band devices onto the wider 5GHz band for faster connections.
• Load BalanceEnsures large numbers of users have smooth network experiences in high-density business networks
• Airtime FairnessIncreases average network throughput in heavily congested environments

  Specifications Interface1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
ButtonReset
Power 802.3at PoE
12 V / 2 A DC (Power adapter not included)
Energy consumption EU: 20.8 W
US: 22.3 W
Dimensions (W x D x H )(220 × 220 × 32.5 mm)
Antenna typeInternal Omni
2.4 GHz: 2× 4 dBi
5 GHz: 4× 5 dBi
BluetoothYes
WIRELESS FEATURES
Coverage140㎡(1500 ft2)***
Wireless Client Capacity250+**
Concurrent Clients250+** Wire less standards
IEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal speed 5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Features 1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)‡
Seamless Roaming §
Omada Mesh§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power CE:


Продукт известен още и като Omada EAP 673, OmadaEAP673
