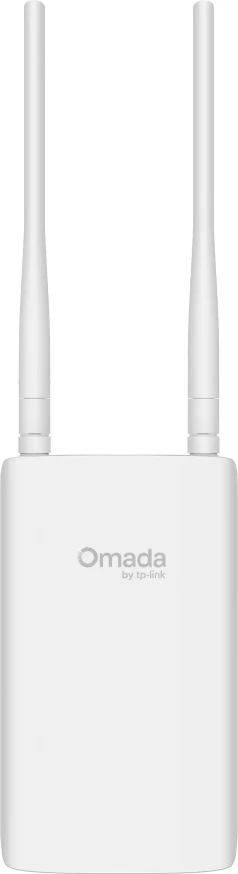

EAP603-Outdoor

AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

• Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.
• Dual-Band Omnidire ctional Coverage:  Up to 300 m (984 ft) long-range coverage.
• PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included).
• Ideal for Outdoor Environments:  IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
• Easy and Quick Setup:  Wall/pole mounting; Omada SDN for one-click setup
• Advance d Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.

  Perfect for Outdoor Wi-Fi Coverage    < p> Long-Range Omni-directional Coverage 2× external antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.   Designed for Outdoors The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments. Designed for OutdoorsThe fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments.     S pecification Details Interfac e 1× 10/100/1000 Mbps Gigabit Ethernet Port (RJ45), PoE in 1× Grounding Terminal Button 1× Reset button (press >5 seconds to restore factory settings) Power Supply Input: 802.3at PoE+ (42.5–57 V, 0.36 A) Max. Power Consumption 15.8 W (802.3at PoE+, 2.4 GHz radio 2×2, 5 GHz radio 2×2, wired link up to 1 Gbps) Idle mode: 4.8 W (PoE) Dimensions (W × D × H) Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in. ) Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in. ) Antenna (Wi-Fi) 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional Single-antenna peak gains Antenna (IoT / Bluetooth) Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional Bluetooth Yes Weatherproof Enclosure IP66 (Wall Mount) IP65 (Pole Mount) Mounting Pole Mount (kits included) Wall Mount (kits included) Wireless Coverage 2.4 GHz: up to 200 m (2,150 ft) 5 GHz: up to 300 m (3,200 ft) Wireless Standards 5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax Operating Frequency 2.4 GHz 5 GHz Signal Rate 2.4 GHz: up to 573 Mbps 5 GHz: up to 1201 Mbps Country-specific restrictions apply Wireless Capacity & Functions Max BSSIDs: 16 (8 per band) Max associated STAs: 250+ Guest Network, ACS, Airtime Fairness, Band Steering Rate Control, Rogue AP Detection, URL Filtering WLAN Optimization, Lock to AP SSID/Client Rate Limit, Load Balance Seamless Roaming (802.11k/v/r, Non-Stick, Ping-Pong Suppression, AI Roaming) Multicast/Broadcast Management (conversion, filtering, rate limit) QoS Wireless Security ACL, MAC Filter 802.1X, MAC-based authentication WPA / WPA2 / WPA3 (Personal & Enterprise), Enhanced Open, None RADIUS Accounting PPSK (with & without RADIUS) Captive Portal (voucher, SMS, RADIUS, LDAP, external portal, etc. ) EAP Types: TLS, TTLS, PEAP, CHAP, SIM, AKA, GTC, FAST, MD5, MSCHAPv2, PEAPv0/v1 Transmit Power (Maximum) CE (EIRP): 2.4 GHz: 20 dBm 5 GHz: 23 dBm (U-NII-1/2A), 29 dBm (U-NII-2C) FCC (Conducted): 2.4 GHz: 25 dBm 5 GHz: 27 dBm (U-NII-1/3), 24 dBm (U-NII-2A/2C) Transmit Power (Minimum) CE (EIRP): 2.4 GHz: 7 dBm 5 GHz: 6 dBm (all U-NII bands) FCC (Conducted): 2.4 GHz: 4 dBm 5 GHz: 4 dBm (all U-NII bands) Power Adjustment Adjustable in 1 dBm increments Management App Omada App supported Restore & Backup Yes Firmware Upgrade Via Web NTP Support Yes Centralized Management Omada Hardware Controller Omada Software Controller Omada Central (Cloud) Omada App Cloud Access Yes (requires Omada controller) Email Alerts Yes LED Control On / Off Management MAC ACL Yes SNMP v1, v2c, v3 SSH Yes Web Management Yes

Продукт известен още и като EAP 603 OUTDOOR, EAP603OUTDOOR, EAP603 OUTDOOR, EAP 603-OUTDOOR
