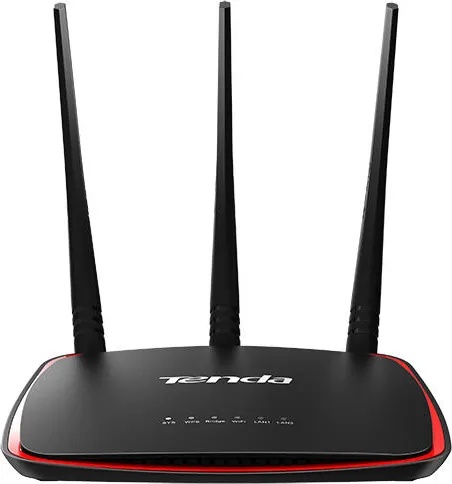

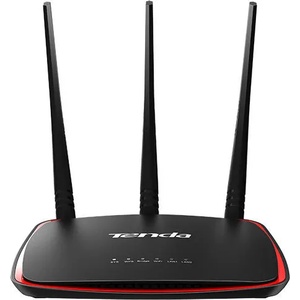

Tenda AP5 AP5 is designed to boost the range of your existing WiFi and creates a stronger signal for game consoles, printers, smart phone, tablet. Power over ethernet supported and wall-mount design make it flexible to deploy in any location. It has multi operation modes like Universal Repeater, Clien(Station), WISP, which can adapt various application scenarios. It is an ideal Wi-Fi booster for large houses, villas, eatery, large stores etc.    One Button to boost Wi-Fi Range AP5 has a Range Extender button, which allows users to boost existing Wi-Fi Range simply by pressing the "Range Extender" button.    Easy to Manage With AP Controller AP5 can be managed by the AP controller, like M3 from Tenda. When you deploy multi APs in networks, you can configure SSID(Wireless network name), Channel, Security Key, Output power etc option through M3 in a single location.    Specifications:   Hardware Dimension 148*146.2*31.5mm   Deployment Desktop/ Wall Mount   Interfaces 2*10/100Mbps Ethernet Port   Antennas Gain 3*5dBi Omini-directional detachable antenna   Reset/WPS Button 1   Range Extender Button 1   Power Consumption 3.7W   LED Indicator SYS, WPS, Bridge, WiFi, LAN1, LAN2   Power Method 12V1A Passive PoE or DC Adapter   Reception Sensitivity MCS0: -96dbm
MCS7: -72dbm    Wireless Frequency Range 2.400 – 2.4835 GHz   Compliant Standards IEEE 802.11b/g/n   Channel Bandwidth 20/40MHz   Maximum Wireless Rate 300Mbps   Max. No. of SSID 2 SSID    Software Operating mode AP/Universal Repeater/Client(Station)/WISP(Client Router)/Router   LAN Settings Static IP
Dynamic IP Enable/Disable Wireless Radio Support SSID Hidden Support Wireless Client isolation Support SSID Isolation Support Client Limitation For SSID Support Wireless Access Control Support Weak Signal Client Limitation Support WMM Capable Support Wireless Security 64/128 WEP, WPA-PSK, WPA2-PSK, WPA VLAN Tagging for SSID Support DHCP Server Support VPN Pass-Through Support Dyndns Support Username Managerment Support System Logs Support   Managed By Controller M3 or Tenda Router with AP Controller feature    Others Operation Temperature -10℃ ~ 45℃   Storage temperature -30℃ ~ 70℃   Operating Humidity 10%~90% non-condensing   Storage Humidity 10%~90% non-condensing   Default login IP 192.168. 0.254   Certification FCC/CE/RoHS
