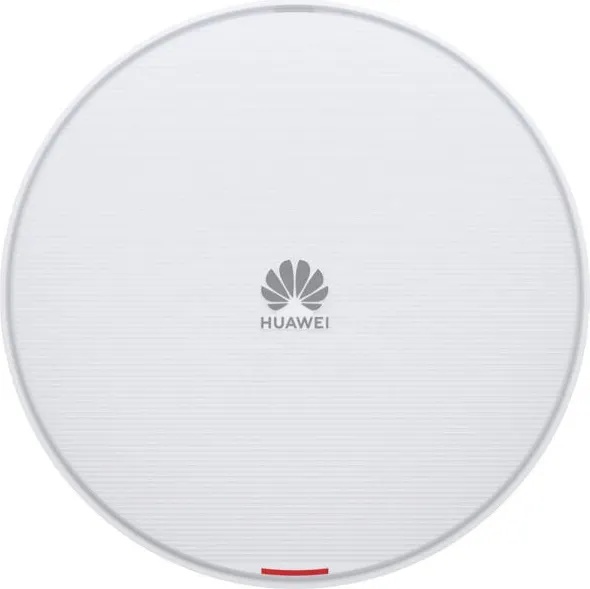

HUAWEI AirEngine5761-1111ax indoor2+2 dual bandssmart antennaUSBBLE
Device Type:Radio access point
Ruggedized Design:Indoor
Width:22 cm
Depth:22 cm
Height:5 cm
Тегло, kg:1.05
Form Factor:External
Connectivity Technology:Wireless
Data Transfer Rate:1.775 Gbps
Line Coding Format:1024 QAM, OFDMA
Data Link Protocol:IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Network / Transport Protocol:NTP, DNS, SFTP, HTTP, HTTPs, IPv6, Telnet
Routing Protocol:GRE
Remote Management Protocol:SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, Web NMS, SFTP, STelnet, NTP, RADIUS
Cloud-Managed:Да
Frequency Band:2.4 GHz, 5 GHz
Status Indicators:Status
Features:NAT support, Wi-Fi Multimedia (WMM) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), hidden SSID, Dynamic ARP Inspection (DAI), LLDP support, Maximum Ratio Combining (MRC), CAPWAP support, Low Density Parity Check (LDPC), DHCP client, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), cyclic shift diversity (CSD), Unscheduled Automatic Power Save Delivery (U-APSD), IP source guard, beamforming technology, protected management frames, MAC address authentication, Dynamic Frequency Selection (DFS), Signal Sustain Technology (SST), Extended Service Set (ESS), 2x2 MU-MIMO technology, Short Guard Interval, IPv6 Source Address Validation Improvements (SAVI), Target Wait Time (TWT), Spectrum Analysis, High Density Boost technology, SmartRadio, Media Dependent Interface (MDI), Media Dependent Interface Crossover (MDI-X), mDNS
Encryption Algorithm:AES, 128-bit WEP, 64-bit WEP, 154-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK, WEP, WAPI, WPA3, Simultaneous Authentication of Equals (SAE), WPA3-SAE, 192-bit WEP
Authentication Method:RADIUS, Secure Shell v. 2 (SSH2), Extensible Authentication Protocol (EAP)
Compliant Standards (Networking):IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11h, IEEE 802.11e, IEEE 802.11k, IEEE 802.3at, IEEE 802.11w, IEEE 802.11r, IEEE 802.11v
Compliant Standards (Miscellaneous):CISPR 24, EN55022, ICES-003, IEC 61000-4-2, IEC 61000-4-6, EN55024, CISPR 22, RSS-210, RSS-102, FCC Part 15, FCC Part 2, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, GB 4943, GB 17625.1, Directive 2002/95/EC, Directive 2011/65/EU, GB 9254, AS/NZS CISPR 22, ITU-T K. 20, WEEE 2002/96/EC, WEEE 2012/19/EU, EN 301 489-1, EN 62368-1, IEC 62368-1, ETSI EN 300 328, ETSI EN 301 893, UL 62368-1, OET 65, CENELEC EN 50385, CENELEC EN 62311, ETSI EN 60601-1-2, Directive 1907/2006/EC, EN 301 489-17, YD/T 1312.2-2004, FCC Part 1, FCC KDB, CAN/CSA C22.2 No. 60950-1
Antenna:Internal
Internet of Things (IoT) Compatible:Да
Communications Technology:RFID, Zigbee
Power Over Ethernet (PoE) Supported:PoE+
Power Device:External power adapter
Voltage Required:DC 12 V
Power Consumption Operational:15.3 Watt
Min Operating Temperature:-10 °C
Max Operating Temperature:50 °C
Humidity Range Operating:5 - 95% (non-condensing)

Продукт известен още и като 5761 11 02353 VUR, 57611102353VUR, 5761 11 (02353VUR), 5761-1102353VUR, 5761-11 (02353 VUR)
