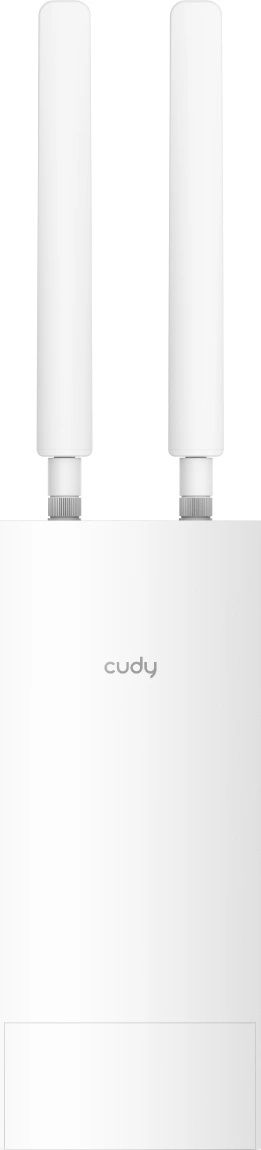

Cudy AP3000 Outdoor A pole/wall-mounted WiFi 6 AP featuring eFEM providing exceptional range performance. The IP65 casing, PoE, and Cudy Mesh features, ideal for high-density park, farm, and parking lot environments.

• IP65, -40~70°C (-40~158°F), 6kV Surge
• 4-Stream Dual-Band Wi-Fi 6
• 2402 Mbps + 574 Mbps Wi-Fi 1
• 1× Shielded GbE PoE In
• 802.3at, 48~57V Passive PoE
• Watchdog, Schedule Reboot
• Max 320 m (1050 ft) Range
• 200 Connected Devices

   Super-Fast, Super-Efficient AX3000 Wi-Fi 6 Wi-Fi 6 with the highest 160 MHz channel width and 1024-QAM modulation provide up to 3 Gbps total throughput. OFDMA and MU-MIMO work on uplink plug download directions allowing it to connect over 100 devices while minimizing latency. (Max 512 devices)  High-Power Wi-Fi Coverage with Five PA Equipped with five power amplifiers and a 3+2 antenna structure, this AP delivers top-notch capabilities to navigate its signal through physical obstacles.   Seamless Roaming for Smooth Wi-Fi Experience Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.   CPU Chipset MT7981BA  CPU Details 1.3 GHz Dual-Core CPUMemory/Storage Flash/ROM 128 MB (1 Gbit) NAND  DDR/RAM 256 MB (2 Gbit) DDR3Wireless 5 GHz Wi-Fi Speed 2402Mbps  2.4 GHz Wi-Fi Speed 574Mbps  5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)  Wi-Fi Antennas 1× Internal+2× External  5 GHz Antenna Gain Max 6 dBi  2.4 GHz Antenna Gain Max 4 dBi  FEM or PA/LNA

• 5 GHz: 3× High-Power
• 2.4 GHz: 2× High-Power

  Detachable Wi-Fi Antennas Connector RP-SMA Female  Beamforming True  Range Performance Max: 320 m (1050 ft)
Park: 280 m (919 ft)
Street: 70 m (230 ft)
Woods: 40 m (131 ft)Interfaces Gigabit RJ45 Ports 1  Ethernet Notes Accepts PoE powering  LED System  Physical Buttons

• WPS Button
• Reset Button

  Power Input PoE via Ethernet PortPower Power Methods

• 802.3at PoE
• Passive PoE

  Passive PoE 48 ~ 57V  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE  Max Power Consumption (W) 18 W  Idle Power Consumption (W) 5 WReliability Advanced Hardware Watchdog  Lightning/Surge Protection 6kV  ESD Contact Protection 4kV  ESD Air Protection 8kV  Environment Operating Temperature: -40 ℃ ~ 65 ℃ (-40 ℉ ~149 ℉)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 10% ~ 95% non-condensing  Ingress Protection Rating IP65 When devices is installed verticallyCertifications FCC, CEMechanical Installation

• Wall-mount
• Pole-mount

  Dimension Device Body:
240×100×53.7 mm
9.45×3.94×2.11 inches
Each Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches  Product Weight 455 g (16.05 oz. )
