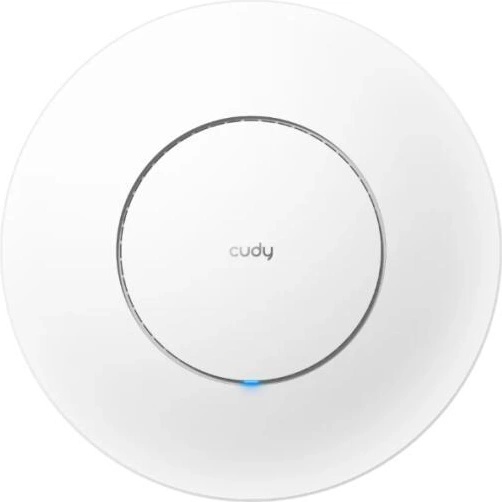

Responsive and Wide-Coverage Wi-Fi for SMB AP1200 delivers seamless, high-speed dual-band Wi-Fi that supports both new and legacy devices on their respective bands. Ideal for small-sized offices, and classrooms.   Connect More Devices With MU-MIMO technology, multiple devices can receive data simultaneously, enhancing efficiency and performance even under heavy usage. Boosted Coverage Beamforming technology tracks connected devices' directions and boosts signal towards them, improving coverage performance.  Multi-Mode for Multiple Scenarios Access Point Simply create a Wi-Fi spot behind a router. Wi-Fi Router Please use the router mode when PPPoE authorization is needed or when creating a separate subnet is needed. Range Extender The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas. WISP WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.   Specifications  Hardware SpecsCPU CPU Details 580 MHz Single-Core CPUMemory/Storage Flash/ROM 16 MB (128 Mbit) NOR  DDR/RAM 128 MB (1 Gbit) DDR2Wireless 5 GHz Wi-Fi Speed 867 Mbps  2.4 GHz Wi-Fi Speed 300 Mbps  5 GHz Wi-Fi Streams 2 Spatial Streams  2.4 GHz Wi-Fi Streams 2 Spatial Streams  Wi-Fi Antennas 4× Internal  FEM or PA/LNA

• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal

  Beamforming Yes  Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')Interfaces 10/100 Mbps RJ45 Ports 1  Ethernet Notes Accepts PoE powering  LED System  Physical Buttons Reset ButtonPower Power Input Type

• DC Jack
• PoE via Ethernet Port

  Power Methods

• DC
• Passive PoE
• 802.3at/af PoE

  Power Input

• DC: 12V⎓1A
• Passive PoE: 24V⎓
• PoE: 802.3at/af

  Power Adapter In the Box AP1200 | No adapter in the box
AP1200P | PoE adapter in the box:
Input: 100-240V~, 50/60Hz
Output: 24V⎓ Passive PoE  Max Power Consumption (W) 12 W  Idle Power Consumption (W) 2.5 WReliability EMC ESD: Contact: 4kV; Air: 8kV  Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensingCertifications FCC, CEMechanical Installation

• Wall-mount
• Ceiling-mount

  Dimension Φ231.9×57.1 mm
Φ9.13×2.25 inches  Product Weight

• EU: 370.5 g (13.07 oz. )
• With PoE Adapter (_P) | EU: 370.5 g (13.07 oz. )

 Software SpecsWireless Wi-Fi Standards Wi-Fi 5  Max Wi-Fi Modulation 256-QAM  Wi-Fi Efficiency MU-MIMO  Wi-Fi Efficiency Note MU-MIMO available on 5 GHz  Max Capacity 128  Recommended Client Upper Limit 50  Wi-Fi Channel Width Auto/20/40/80 MHz  Wi-Fi Security WPA/WPA2/WPA3  Guest Network 2.4 GHz, 5 GHz  WPS YesGeneral Operation Modes

• Wi-Fi Router
• Access Point
• Range Extender
• WISP
• Client

  Mesh Cudy Mesh  Mesh Backhaul

• Wireless Backhaul
• Wired Backhaul

  Multi-Band Backhaul Yes  WAN Mode

• DHCP
• Static IP
• PPPOE
• PPTP
• L2 TP

  Internet Failover Sequence

• WAN
• WISP

Manage ment All Devices Management

• Wi-Fi Time Schedule
• MAC Filter
• IP/MAC Binding

  Per-Devices Management

• Internet On/Off
• VPN On/Off
• Online Time Schedule
• Device Rename

  Content Management

• Domain Filter
• IP Filter

Network QoS Per-User Rate Limiting  DHCP

• Address Reservation
• DHCP Client List
• Server

  IP Versions IPv4/IPv6  IPv6 Protocols

• Relay
• Dynamic (SLAAC/DHCPv6)
• Static (Fixed IP)
• Passthrough
• 464XLAT < /li>
• MAP-E
• DS-Lite

Продукт известен още и като AP 1200
