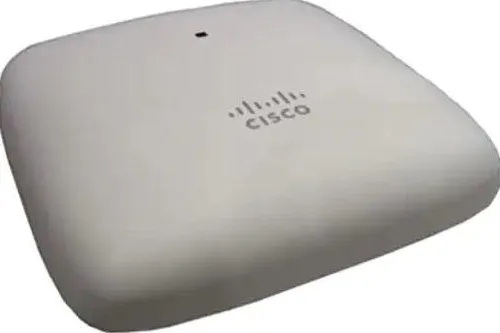

CISCO Business W240AC 802.11ac Wave 2 Access Point




Manufacturer
CISCO

Manufacturer Part No
CBW240AC-E



Marketing Description
The Cisco Business 240AC Access Point delivers high density MU-MIMO (4x4) wireless connectivity for small offices. Designed with simplicity, flexibility and security in mind, the Cisco Business 240AC provides superior performance and enhanced range for an optimal user experience. Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.

Product Features

PERFORMANCESuperior MU-MIMO (4x4) performance supporting up to 200 wireless devices and a maximum wireless coverage up to 3000 square feetDEPLOYMENTFlexible deployment wall or celling mount (brackets included). Works also with Cisco Business Power over Ethernet injector (CB-PWRINJ)ENHANCED COVERAGESupports up to 25 mesh extenders while delivering a reliable user experienceSET UP IN MINUTESSimplify management and monitor your network from Cisco Business Mobile app or web browserADVANCED SECURITYEnterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration

General

Device Type

Radio access point

Width

17.8 cm

Depth

17.8 cm

Height

3.8 cm

Weight

430 g

Processor / Memory / Storage

RAM

1 GB

Flash Memory

256 MB

Networking

Form Factor

External

Connectivity Technology

Wireless

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (5 GHz): 1733 Mbps

Capacity

Wireless clients per Wi-Fi radio: 200

Wireless clients: 400

VLANs supported: 16

Status Indicators

Status

Features

VLAN support, manageable, DFS support, Mesh networking, Wi-Fi Multimedia (WMM) support, RADIUS support, ceiling mountable, 802.1x authentication, beamforming technology, Authentication, Authorization and Accounting (AAA), 4x4 MU-MIMO technology

Encryption Algorithm

AES, TLS, PEAP, TTLS, WPA2, WPA3

Authentication Method

RADIUS, MS-CHAP v. 2, Extensible Authentication Protocol (EAP), EAP-FAST

Compliant Standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1

Aerial

Antenna

Internal

Antenna Qty

2

Directivity

Omni-directional

Expansion / Connectivity

Interfaces

2 x 1000Base-T (PoE+) - RJ-45

Miscellaneous

Compliant Standards

EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, CECP, EN 62209-1, SRRC, CNS 13438, EN 50385, EN 61000-3-3:2013, CISPR 24:2010, EN 62209-2, EN 60601-1-1, EN 61000-3-2:2014, LP0002, RSS-247, NRCAN, KN32, EN 55032:2012+AC:2013 Class A, TCVN 7189, EN 55032:2015, ICES-003 issue 6 Class B, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17 V3.1. 1 (2017), EN 300 328 V2.1. 1, EN 55035, AS/NZS 2772, EN 301 489-1 V2.1. 1:2017, AS/NZS CISPR 32:2015, CISPR 32:2015, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, EN 301 893 V2.1. 1, AS/NZS 4268:2017

Power

Power Over Ethernet (PoE) Supported

PoE+

Power Consumption Operational

13.2 Watt

Manufacturer Warranty

Service & Support

Limited warranty - replacement - lifetime

Environmental Parameters

Min Operating Temperature

-30 °C

Max Operating Temperature

70 °C

Humidity Range Operating

10 - 90% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.

Продукт известен още и като CBW 240 AC E, CBW240ACE, CBW240AC E, CBW 240AC-E
