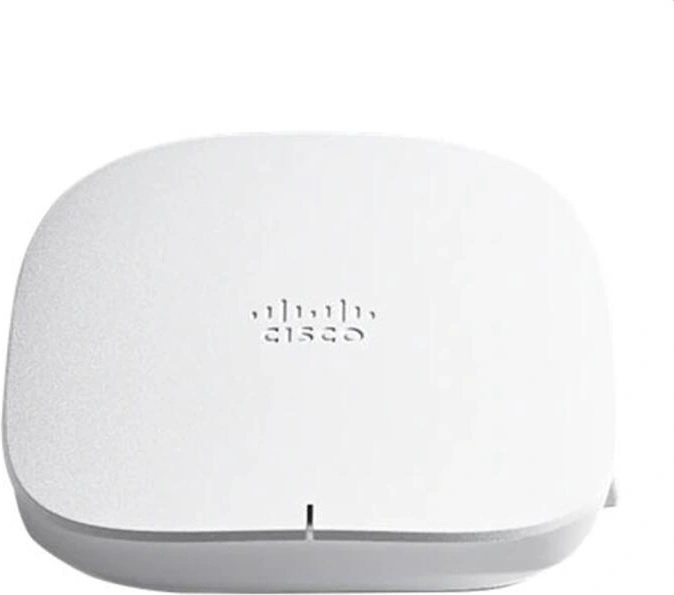

CISCO Business 150AX Access Point




Manufacturer
CISCO

Manufacturer Part No
CBW150AX-E-EU



Marketing Description
The Cisco Business 150AX Access Point delivers increased speed and capacity with Wi-Fi 6 in a compact form factor. Ideal for indoor Wi-Fi coverage, the Cisco Business 150AX delivers a highly secure and reliable wireless connection for small business workplaces. Compatible with Cisco Business 151AXM Mesh Extenders to rapidly expand your Wi-Fi network.

Product Features

PERFORMANCEEnterprise-grade Wi-Fi 6 2x2 performance delivering highly secure and reliable wireless connectivity for small businessesDEPLOYMENTFlexible deployment wall or celling mount (Power over Ethernet injector and mounting kit included)FLEXIBILITYMix and match with Cisco Business Wi-Fi 6 access points and mesh extenders to increase your Wi-Fi coverageSET UP IN MINUTESSimplified management and monitor your network from Cisco Business Mobile app or web browserADVANCED SECURITYEnterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration

General

Device Type

Radio access point

Width

15.04 cm

Depth

15.04 cm

Height

3.99 cm

Weight

330 g

Localisation

Europe

Processor / Memory / Storage

Processors Installed

1 GHz

RAM

1 GB

Flash Memory

512 MB

Networking

Form Factor

Wall / ceiling mountable

Connectivity Technology

Wireless

Data Transfer Rate

1.488 Gbps

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax

Spread Spectrum Method

OFDMA

Remote Management Protocol

HTTP, RADIUS

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (5 GHz): 1.2 Gbps

Capacity

VLANs supported: 16

Wireless clients per Wi-Fi radio: 200

Wireless clients: 400

Status Indicators

Status

Features

VLAN support, manageable, DFS support, wall mountable, Mesh networking, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), beamforming technology, Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), 2x2 MU-MIMO technology, Target Wait Time (TWT), BSS Coloring

Encryption Algorithm

AES, TLS, PEAP, TTLS, WPA, WPA2, WPA2-Enterprise, WPA3, PEAPv1

Authentication Method

RADIUS, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-TLS

Compliant Standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, IEEE 802.11ax

Aerial

Antenna

Internal

Antenna Qty

2

Directivity

Omni-directional

Expansion / Connectivity

Interfaces

1 x 1000Base-T (PoE) - RJ-45

Miscellaneous

Included Accessories

Ceiling mounting kit

Compliant Standards

ICES-003, FCC Part 15 B, FCC Part 15.247, RSS-102, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15.407, ARIB STD-T71, EN 50385, FCC OET Bulletin 65c, RSS-247, EN 62368-1, IEC 62368-1, EN 55032, EN 55035, EMI Class B, EN 300328, EN 301893, CAN/CSA C22.2 No. 60950-1, UL/CUL 62368-1, ARIB STD-66, EN 301489-1, EN 301489-17

Power

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

9.2 Watt

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
