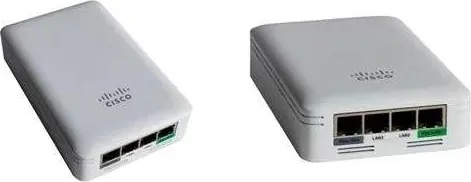

CISCO Business W145AC 802.11ac 2x2 Wave 2 Access Point Wall Plate




Manufacturer
CISCO

Manufacturer Part No
CBW145AC-E



Marketing Description
The Cisco Business 145AC Access Point provides converged access, ideal for small hospitality, retail, office, and educational environments. High performance MU-MIMO (2x2) access points deliver enterprise-grade wireless for small businesses. Embedded Power over Ethernet (PoE) port provides additional connectivity support. Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.

Product Features

PERFORMANCEEnterprise-grade MU-MIMO (2x2) performance delivering highly secure and reliable wireless connectivity for small businessesDEPLOYMENTFlexible deployment wall or celling mount (brackets included). Works also with Cisco Business Power over Ethernet injector (CB-PWRINJ)FLEXIBILITYMix and match with Cisco Business Wireless access points and mesh extenders to increase your Wi-Fi coverageSET UP IN MINUTESSimplify management and monitor your network from Cisco Business Mobile app or web browserADVANCED SECURITYEnterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration

General

Device Type

Radio access point

Width

8.9 cm

Depth

14 cm

Height

3.15 cm

Weight

280 g

Processor / Memory / Storage

Processors Installed

710 MHz

RAM

1 GB

Flash Memory

256 MB

Networking

Form Factor

Wall mountable

Connectivity Technology

Wireless

Data Transfer Rate

1 Gbps

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (2.4 GHz): 300 Mbps

Maximum data rate (5 GHz): 867 Mbps

Capacity

Wireless clients per Wi-Fi radio: 200

Wireless clients: 400

Status Indicators

Status

Features

Manageable, DFS support, wall mountable, Mesh networking, Wi-Fi Multimedia (WMM) support, RADIUS support, ceiling mountable, 802.1x authentication, MU-MIMO technology, SU-MIMO technology, Authentication, Authorization and Accounting (AAA), security slot (Kensington security lock compatible)

Encryption Algorithm

AES, TLS, PEAP, TTLS, WPA2, WPA3

Authentication Method

RADIUS, MS-CHAP v. 2, Extensible Authentication Protocol (EAP), EAP-FAST

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11ac Wave 2

Aerial

Antenna

Internal

Expansion / Connectivity

Interfaces

1 x 1000Base-T (PoE) - RJ-45

1 x 1000Base-T (PoE output) - RJ-45

2 x 1000Base-T - RJ-45

1 x pass-through - RJ-45

Miscellaneous

Included Accessories

Torx security screw, mounting bracket

Compliant Standards

VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EN 300 328, EN 50385, FCC OET Bulletin 65c, EN 301 489-1, RSS-247, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EMI Class B, EN 301 489-17

Power

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

8.5 Watt

Manufacturer Warranty

Service & Support

Limited warranty - replacement - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 90% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
