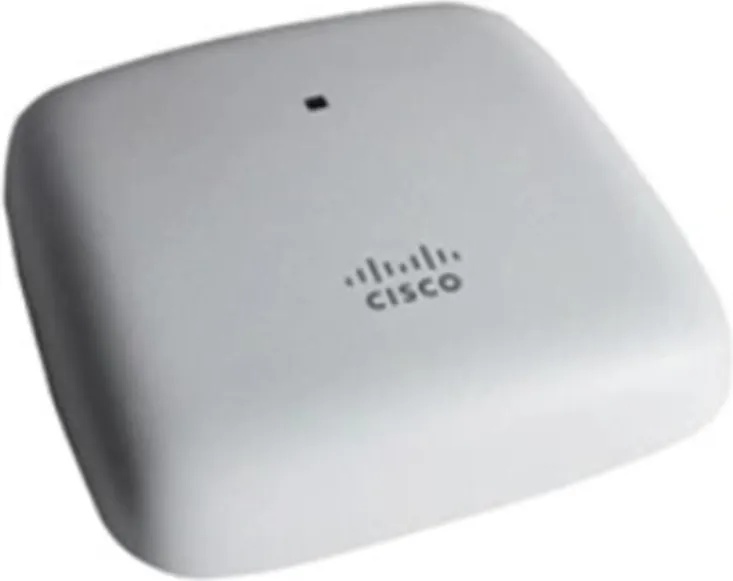

CISCO Business W140AC 802.11ac 2x2 Wave 2 Access Point Ceiling Mount




Manufacturer
CISCO

Manufacturer Part No
CBW140AC-E



Marketing Description
The Cisco Business 140AC Access Point delivers powerful multi-user, multiple input, multiple output (MU-MIMO) (2x2) wireless in a compact form factor. Ideal for indoor Wi-Fi coverage, the Cisco Business 140AC delivers a highly secure and reliable wireless connection for small business workplaces. Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.

Product Features

PERFORMANCEEnterprise-grade MU-MIMO (2x2) performance delivering highly secure and reliable wireless connectivity for small businessesDEPLOYMENTFlexible deployment wall or celling mount (brackets included). Works also with Cisco Business Power over Ethernet injector (CB-PWRINJ)FLEXIBILITYMix and match with Cisco Business Wireless access points and mesh extenders to increase your Wi-Fi coverageSET UP IN MINUTESSimplify management and monitor your network from Cisco Business Mobile app or web browserADVANCED SECURITYEnterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration

General

Device Type

Radio access point

Width

15.08 cm

Depth

15.08 cm

Height

3.3 cm

Weight

400 g

Processor / Memory / Storage

Processors Installed

710 MHz

RAM

1 GB

Flash Memory

256 MB

Networking

Form Factor

External

Connectivity Technology

Wireless

Data Transfer Rate

1 Gbps

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (2.4 GHz): 300 Mbps

Maximum data rate (5 GHz): 867 Mbps

Capacity

Wireless clients per Wi-Fi radio: 200

Wireless clients: 400

VLANs supported: 16

Status Indicators

Status

Features

VLAN support, manageable, DFS support, wall mountable, Mesh networking, Wi-Fi Multimedia (WMM) support, RADIUS support, ceiling mountable, 802.1x authentication, MU-MIMO technology, SU-MIMO technology, Authentication, Authorization and Accounting (AAA)

Encryption Algorithm

AES, TLS, PEAP, TTLS, WPA2, WPA3

Authentication Method

RADIUS, MS-CHAP v. 2, Extensible Authentication Protocol (EAP), EAP-FAST

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11ac Wave 2

Aerial

Antenna

Internal

Expansion / Connectivity

Interfaces

1 x 1000Base-T (PoE) - RJ-45

Miscellaneous

Included Accessories

Torx security screw, ceiling rail mount clip, mounting bracket

Compliant Standards

VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EN 300 328, EN 50385, FCC OET Bulletin 65c, EN 301 489-1, RSS-247, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EMI Class B, EN 301 489-17

Power

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

8.3 Watt

Manufacturer Warranty

Service & Support

Limited warranty - replacement - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 90% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.

Продукт известен още и като CBW 140 AC E, CBW140ACE, CBW140AC E, CBW 140AC-E
