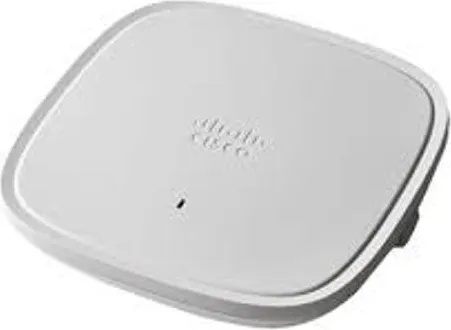

CISCO Точка за достъп Cisco Catalyst 9120AX Series





Manufacturer
CISCO

Manufacturer Part No
C9120AXI-E



Marketing Description

The Catalyst 9120 Access Points are designed for mission-critical deployments with dual 5-GHz and integrated IoT radio. With CleanAir technology powered by Cisco RF ASIC, the C9120 access point goes beyond the Wi-Fi 6 (802.11ax) standard, providing radio-frequency excellence for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a network-wide consistency through automation and virtualisation.

Product Features

POWERFUL Wi-Fi 6 PERFORMANCE4x4 Flexible Dual Radio with 5GHz and 2.4GHz or two 5GHz configuration, up to 5.38 Gbps data rate, uplink/downlink OFDMA, MU-MIMO, BBS colouring, TWT and Embedded IoT radios enabling BLE 5.0 and Zigbee
CISCO CLEANAIRPowered by Cisco RF ASIC, offer superior analytics and security
ECOSYSTEMEnd-point interoperability and optimised performance on Apple and Samsung devices
EMBEDDED WIRELESS CONTROLLERController functions embedded in the Access Point for easy deployment, network monitoring and troubleshooting. Support with WebGUI and mobile app (C9120AXI(E)-EWC models only)
PEACE OF MIND90-day software and limited lifetime hardware warranty

General

Device Type
Radio access point

Ruggedized Design
Indoor

Width
21.6 cm

Depth
21.6 cm

Height
4.3 cm

Weight
1.3 kg

Processor / Memory / Storage

RAM
2 GB

Flash Memory
1 GB

Networking

Form Factor
External

Connectivity Technology
Wireless

Line Coding Format
OFDMA

Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)

Network / Transport Protocol
IPSec, IPv6

Remote Management Protocol
NETCONF, RESTCONF

Frequency Band
2.4 GHz, 5 GHz

Status Indicators
Status

Features
DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic Frequency Selection (DFS), Dynamic QoS, guest access, secure boot, 4x4:4 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module

Encryption Algorithm
AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST

Authentication Method
MS-CHAP v. 2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM

Compliant Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Aerial

Antenna
Internal

Directivity
Omni-directional

Internet of Things (IoT)

Internet of Things (IoT) Compatible
Yes

Communications Technology
Bluetooth Low Energy (LE)

Expansion / Connectivity

Interfaces
1 x 1/2.5GBase-T - RJ-451 x management - RJ-451 x USB 2.0

Miscellaneous

Compliant Standards
CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN

Power

Power Over Ethernet (PoE) Supported
UPOE

Software / System Requirements

Software Included
CAPWAP Software Image

Manufacturer Warranty

Service & Support
Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature
0 °C

Max Operating Temperature
50 °C

Humidity Range Operating
10 - 90% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
