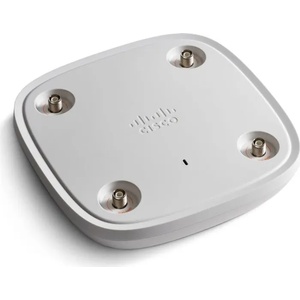

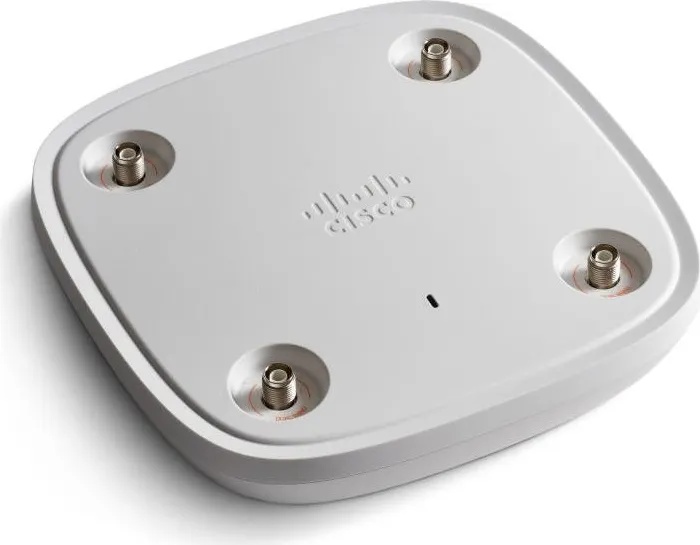

CISCO Embedded Wireless Controller on C9120AX Access Point
id="p3568327"> CISCO Embedded Wireless Controller on C9120AX Access PointManufacturer CISCOManufacturer Part No C9120AXE-EMarketing DescriptionThe Cisco Catalyst 9120 Series Access Points are resilient, secure, and intelligent. The Catalyst 9120 provides integrated security, resiliency and operational flexibility as well as increased network intelligence.
The Catalyst 9120 scales to the growing demands of IoT while fully supporting the latest innovations and modern technologies. Not only that, but the Catalyst 9120 is the leaders in performance, security and analytics.
These access points are the first step in updating your network and are able to take better advantage of all of the features and benefits that Wi-Fi 6 provides. Product Features

• MU-MIMO technology
  Supporting four spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput.
• Target wake time
  The power savings mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices.
• Intelligent Capture
  Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. The software can track over 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks.

GeneralDevice TypeRadio access pointRuggedized DesignIndoorWidth21.6 cmDepth21.6 cmHeight5.1 cmWeight1.36 kgProcessor / Memory / StorageRAM2 GBFlash Memory1 GBNetworkingForm FactorExternalConnectivity TechnologyWirelessLine Coding FormatOFDMAData Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)Network / Transport ProtocolIPSec, IPv6Remote Management ProtocolNETCONF, RESTCONFFrequency Band2.4 GHz, 5 GHzStatus IndicatorsStatusFeaturesDFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic Frequency Selection (DFS), Dynamic QoS, guest access, secure boot, 4x4:4 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor moduleEncryption AlgorithmAES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FASTAuthentication MethodMS-CHAP v. 2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIMCompliant StandardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6AerialAntennaExternal detachableInternet of Things (IoT)Internet of Things (IoT) CompatibleYesCommunications TechnologyBluetooth Low Energy (LE)Expansion / ConnectivityInterfaces1 x 1/2.5GBase-T - RJ-45
1 x management - RJ-45
1 x USB 2.0
4 x aerialMiscellaneousCompliant StandardsCISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GENPowerPower Over Ethernet (PoE) SupportedUPOESoftware / System RequirementsSoftware IncludedCAPWAP Software ImageManufacturer WarrantyService & SupportLimited warranty - lifetimeEnvironmental ParametersMin Operating Temperature-20 °CMax Operating Temperature50 °CHumidity Range Operating10 - 90% (non-condensing) Technical data provided by third party. We assume no liability for errors within these data.
CISCO .

Продукт известен още и като C 9120 AXE E, C9120AXEE, C9120AXE E, C 9120AXE-E
