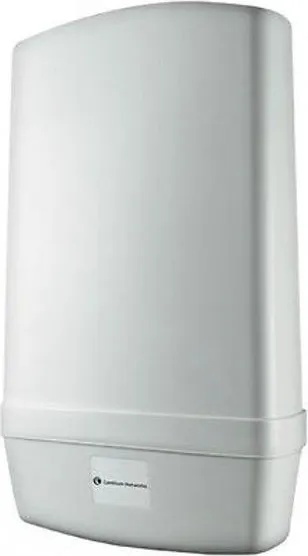

Canopy 5440SM предлага до 21 Mbps пропусквателна способност и до 8 километра обхват при ниска модулация.
Характеристики
Скорост на предаване: 35 Mbps Maximum
Типичен обхват:до 8 километра при ниска модулация
Честотен диапазон: 5470-5725 MHz
Тип на модулацията: 1X = QPSK (3/4); 2X = 16QAM (3/4); 3X = 64QAM (3/4)
Криптиране: DES
Усилване на антената (dBi): 17 dBi

Specifications:
Canopy Part Number
5440SM

Description
CAP54400-400 Series SM

Signaling Rate
35 Mbps Maximum

Typical LOS Range
up to 5 miles (8 km) at lowest modulation

Typical Aggregate Useful Throughput
21 Mbps (Max)

Frequency range of band
U-NII 5470-5720 MHz

Non-overlapping Channels
up to 25

Channel Width
10 MHz

Modulation Type
1X = QPSK (3/4); 2X = 16QAM (3/4);3X = 64QAM (3/4)

Channel Spacing
Configurable on 5MHz increments

Encryption
DES

Latency
5-7 msec

Nominal Receiver Sensitivity (dbm typical)
1X: -89 dBm, 2X: -78 dBm, 3X: -70dBm

Antenna Gain (dBi)
17dBi

EIRP (dBm)
27dBm max

DC Power (typical)
40 years

Temperature
-40 degree C to +55 degree C (-40 degree F to +131 degree F ) Humidity: 0 to 95%, non-condensing

Wind Survival
190km/hour (118mi/hour)

Dimensions
13.25 H x 8.25 W x 4.38 D (33.7cm H x 21cm W x 11.1cm D)

Weight
2.8 lbs (1.27 kg)

Access Method
Time Division Duplexing/Time Division Multiple Access (TDD/TDMA)

Interface
10/100BaseT, half/full duplex, rate auto negotiated (802.3 compliant)

Protocols Used
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP

Network Management
HTTP, Telnet, FTP, SNMPv2 (compatible with Prizm 3.1 or later and CNUT 3.0 and later)

FCC ID
ABZ89FT7629

Industry Canada Certification Number
109W-5440

CE
CE marked & compliant to EN301 893, Implements DFS & TPC. DoCs are available at //www. canopywireless. com/doc. php

The Canopy 400 Series AP and SM products operate in the 5.4 GHz spectrum. In many parts of the world, this newly available spectrum gives operators 255 MHz of usable frequency band - that’s almost double the amount available in the 5.7 GHz band. The Canopy 400 Series offers a fast, cost-conscious way to enter this exciting and advantageous spectrum. GPS Synchronization. The 400 Series is equipped with powerful GPS synchronization that significantly reduces self-interference, allowing for co-location applications with existing Canopy networks. Co-location capability enables the system to be deployed as a 5.4 GHZ frequency band overlay network. Deployment Options. The standard Canopy 400 configuration uses an integrated 60-degree antenna. In addition, the Canopy 400 Series is also available as a connectorized solution, allowing operators of overlay, expanded or greenfield networks to choose the antennas they prefer. Common Canopy Environment. The 400 Series can lower the cost of ownership for existing Canopy network operators because the 400 Series APs and SMs use the same Release 8. x application software. They also use the same power supplies, brackets, surge suppressors, and Cluster Management Module (CMM) as other Canopy components—reducing training, support and inventory costs. For simplified network management, 400 Series products are also compatible with the Prizm Element Management System. Dynamic Frequency Selection (DFS). Because the 5.4 GHz frequency band is shared with certain government radar systems, networks operating in the band must have DFS capabilities for resolution of conflicts. Canopy 400 Series APs and SMs meet ETSI DFS Standard for Europe and Brazil, and the FCC Standard for the United States and IC Standard for Canada.


Продукт известен още и като 5440 SM
