Описание
Canopy 400 серията Ви предлага пропусквателна способност до 21 Mbps благодарение на OFDM технологията, която използва.
Характеристики
Includes Antenna 8514724E01
Скорост: 35Mbps Maximum
Oбхват:до 8 километра при ниска модулация
Честотен диапазон: 5470-5725 MHz
Тип на модулацията: 1X = QPSK (3/4); 2X = 16QAM (3/4); 3X = 64QAM (3/4)
Криптиране: DES
Усилване на антената (dBi): 17 dBi

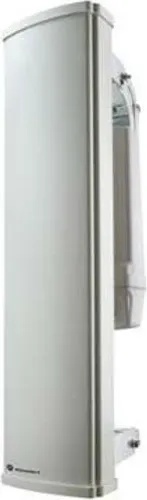

Canopy Part Number 5440AP
Description CAP54400-400 Series AP with integrated antenna
Signaling Rate 35 Mbps Maximum
Typical LOS Range up to 5 miles (8 km) at lowest modulation
Typical Aggregate Useful Throughput 21 Mbps (Max)
Frequency range of band U-NII 5470-5720 MHz
Non-overlapping Channels up to 25
Channel Width 10 MHz
Modulation Type 1X = QPSK (3/4); 2X = 16QAM (3/4);3X = 64QAM (3/4)
Channel Spacing Configurable on 5MHz increments
Encryption DES
Latency 5-7 msec
Nominal Receiver Sensitivity (dbm typical) 1X: -89 dBm, 2X: -78 dBm, 3X: -70dBm
Antenna Gain (dBi) 17dBi
EIRP (dBm) 27dBm max
DC Power (typical) 40 years
Temperature -40 degree C to +55 degree C (-40 degree F to +131 degree F ) Humidity: 0 to 95%, non-condensing
Wind Survival 190km/hour (118mi/hour)
Dimensions 28.75" H x 8.25" W x 11" D (73 cm H x 20.96cm W x 27.94cm D)
Weight ~13 lbs. (5.91 kg)
Access Method Time Division Duplexing/Time Division Multiple Access (TDD/TDMA)
Interface 10/100BaseT, half/full duplex, rate auto negotiated (802.3 compliant)
Protocols Used IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management HTTP, Telnet, FTP, SNMPv2 (compatible with Prizm 3.1 or later and CNUT 3.0 and later)
FCC ID ABZ89FT7629
Industry Canada Certification Number 109W-5440
CE "CE" marked & compliant to EN301 893, Implements DFS & TPC. DoCs are available at //www.
canopywireless. com/doc. php

Продукт известен още и като 5440 AP
