Data Rate: 7Mbps

Frequency Range: 5470 – 5725MHz

Antenna: Integrated
-

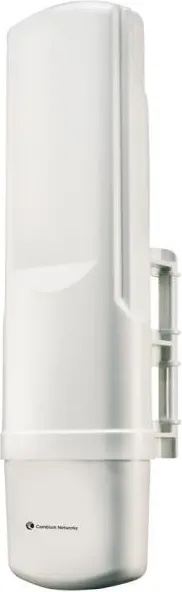

Subscriber Module Cambium/ Motorola Canopy 5400SMDD, 5.4GHz, 10Mbps, 7dBi antenna

Canopy Part Number 5400SM
Description 5.4 GHz SM
Signaling Rate 10 Mbps, 20 Mbps with Advantage AP
Typical LOS Range 3.2 km (2 Miles)
Typical Aggregate Useful Throughput 7 Mbps
Frequency range of band U-NII 5470-5725 MHz
Channel Width 20 MHz
Modulation Type High Index 2-level and 4-level Frequency Shift Keying (FSK) optimized for interference rejection
Channel Spacing configurable on 5 MHz increments
Encryption DES capable
Latency 6 msec with Advantage AP, 15 msec with Canopy AP
Carrier to Interference ratio (C/I) ~3dB @ 10 Mbps, ~10dB @ 20 Mbps at -65dBm
Nominal Receiver Sensitivity (dbm typical) -86 dBm
Antenna Gain (dBi) 7 dBi
EIRP (dBm) 30 dBm
Equivalent Isotropic Radiated Power (EIRP) Adjustable to 1 W
DC Power (typical) 0.3A @ 24VDC = 7.2 W
Antenna Beam Width 3 dB antenna beam width 60 degrees, azimuth and elevation
Mean Time Between Failure (MTBF) 40 years
Temperature -40° C to +55° C (-40° F to +131° F)
Wind Survival 190 km/hr (118 miles/hr)
Dimensions 11.75 in H x 3.4 in W x 3.4 in D (29.9 cm H x 8.6 cm W x 8.6 cm D)
Weight . 45 kg (1 lb)
Access Method Time Division Duplexing/Time Division Multiple Access (TDD/TDMA)
Interface 10/100 Base T, half/full duplex. Rate auto negotiated (802.3 compliant)
Protocols Used IPV4, UDP, TCP, ICMP, Telnet, HTTP, FTP, SNMP
Network Management HTTP, TELNET, FTP, SNMP Version 2c
FCC ID ABZ89FT7623
Industry Canada Certification Number 109W-5400
CE "CE" marked & compliant to EN301 893

Продукт известен още и като 5400 SMDD
